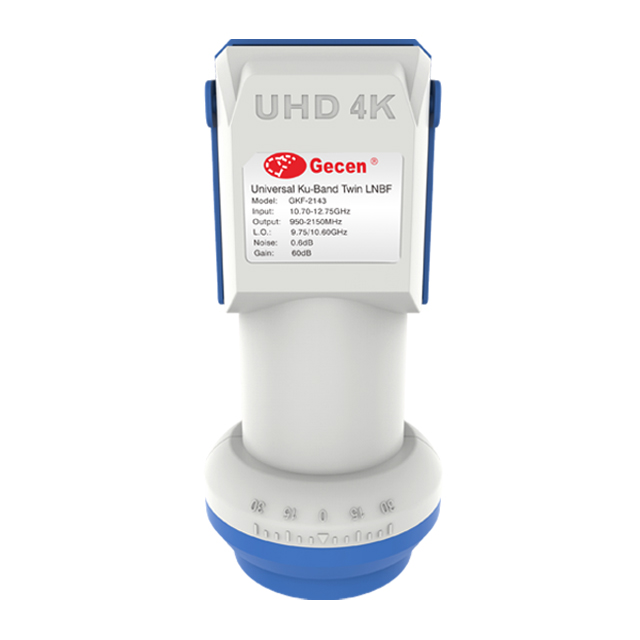

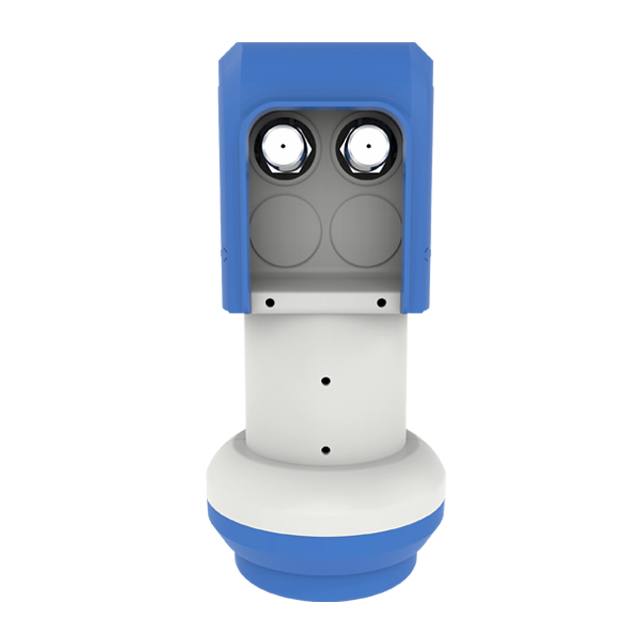

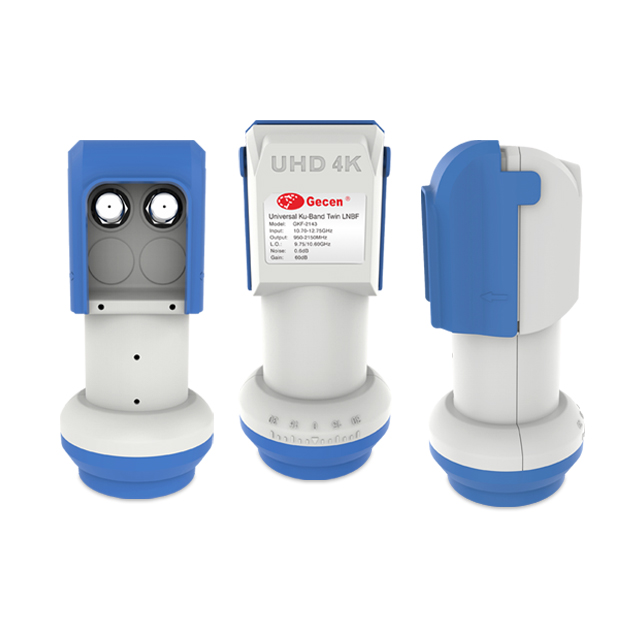

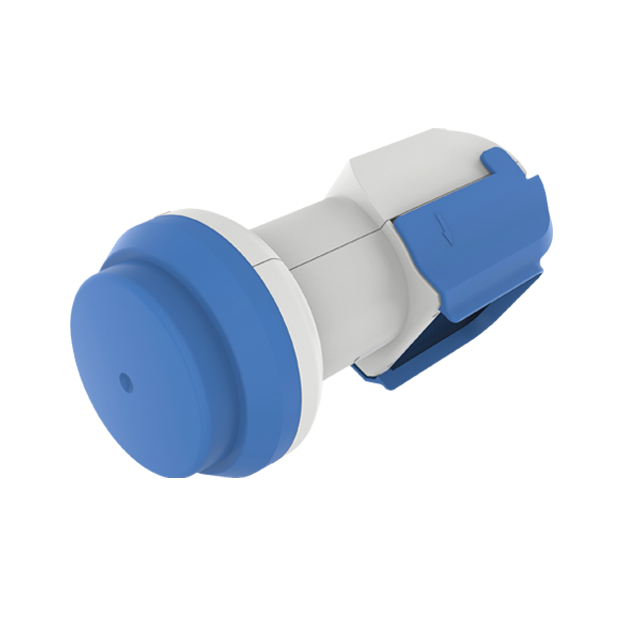

GKF-2143 Universal Ku-Band LNBF
※ Universal Linear Multi-grade Dual Single LNB
※ Solution for DTH operators and satellite broadcast reception
※ Supporting 4K Ultra HD transmissions
※ Excellent performance with low noise and high gain
※ Full coverage of Ku-Band for analog and digital reception.
※ Solution for DTH operators and satellite broadcast reception
※ Supporting 4K Ultra HD transmissions
※ Excellent performance with low noise and high gain
※ Full coverage of Ku-Band for analog and digital reception.
| Main features: | |||
| 1.DVB-S2 (HD and UHD) compliant | |||
| 2.Low noise figure | |||
| 3.Low power consumption | |||
| 4.High cross-pol isolation | |||
| 5.High frequency stability | |||
| 6.Extremely heat and cold resistant | |||

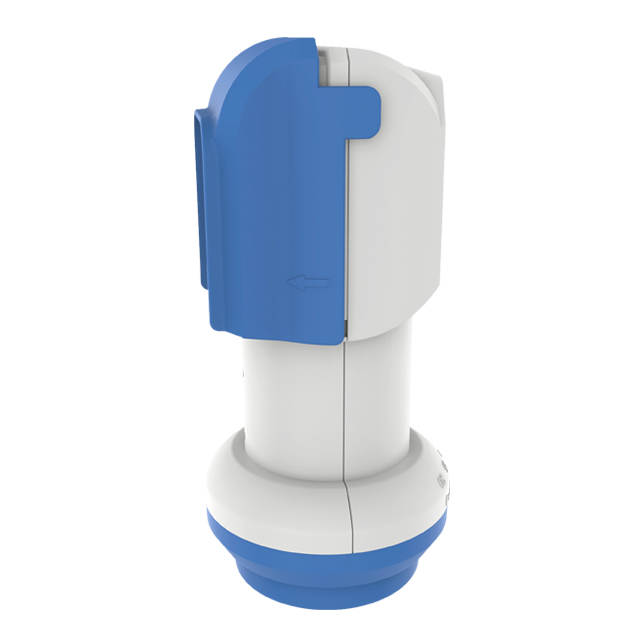

| 7.UV-resistant weather protection housing with a custom-fit weather protection cap | |||
| Item | Specification | Item | Specification |
| Input Frequency Range | Low Band:10.70~11.70GHz | Gain Flatness | ±0.5dB/27MHz |
| High Band:11.70~12.75GHz | Cross POL. Isolation | 20dB(Min.) | |
| Output Frequency Range | Low Band:950~1950MHz | Image Rejection | 40dB(Min.) |
| High Band:1100~2150MHz | Output VSWR | 2.0:1((Typ.) | |
| L.O. Frequency | Low Band:9.75GHz | P1dB | 0dBm (Min.) |
| High Band:10.60GHz | DC Current Consumption | 200mA(Typ.) | |
| L.O. Frequency Stability | ±1.0MHz (Max.)@+25℃ | Low/High Band Switching | Low Band:0Hz |
| ±2.0 MHz (Max.)@-30℃~+70℃ | High Band:22KHz±4KHz | ||
| L.O. Phase Noise | -75dBc/Hz@1KHz | POL. Switching Voltage | 10.5~14.0V @Vertical |
| -80dBc/Hz@10KHz | 16.0~20.0V @Horizontal | ||
| -90dBc/Hz@100KHz | Relative Humidity | 0%~95% | |
| Conversion Gain | 60dB(Typ.) | Operating Temperature | -30℃~+70℃ |
| Noise Figure | 0.6dB(Typ.) | Connector Type | 75Ω Female Connector |
